Equipment Profile: Foundry Ladle & Overhead Crane Pouring System

Overhead Crane Pouring System

1. Equipment Name & Description

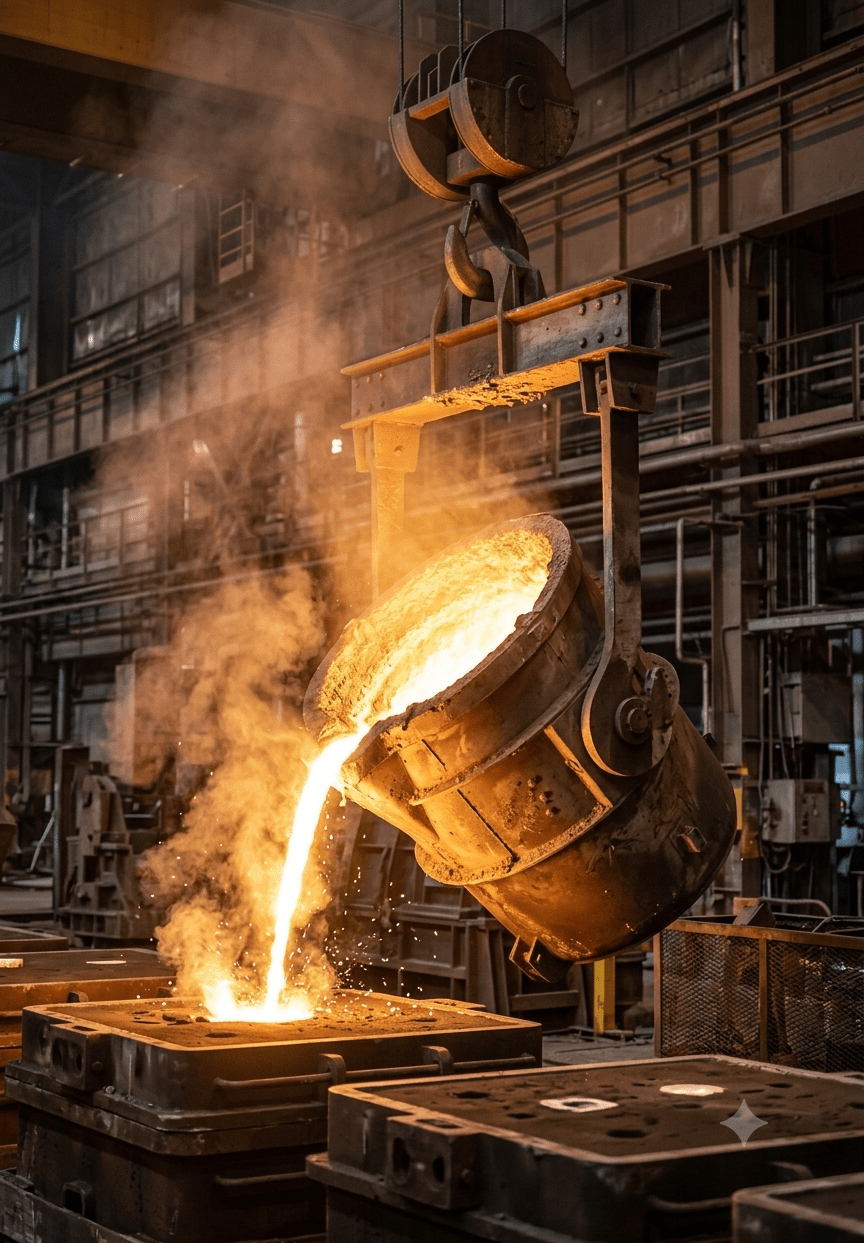

This machinery setup is an industrial Foundry Ladle (specifically a crane-suspended, bottom-pour or teapot-style tilting ladle) integrated with an Overhead Gantry Crane System.

 The Ladle: A heavy-duty, reinforced steel vessel lined with thick refractory brick or ceramic material designed to withstand extreme thermal shocks without warping or melting.

 The Crane System: A heavy-capacity hoist block, wire ropes, and a custom lifting yoke (bale) that securely locks onto the ladle's trunnions (side pivot pins) to safely lift, transport, and mechanically tilt it.
